GaN/Si Epiwafers-GaN Substrate

Q: How are GaN wafers made?

It is made with original HVPE method and wafer processing technology , which has been originally developed for many years. The features are high crystalline, good uniformity, and superior surface quality. GaN substrates are used for LD applications (violet, blue and green).

GaN-on-Si wafers have grown in popularity in the production of High Electron Mobility Transistors (HEMT). It and related binaries InN and AlN, as well as ternary compounds.

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Contents

Features Overview of GaN wafer/GaN Substrate

High uniformity and good repeatability
Low RF loss
“4”, and “6” available

Typical Applications of GaN wafer/ GaN Substrate

5G and 6G wireless communications
Solid-state RF energy application
Semiconductor base material

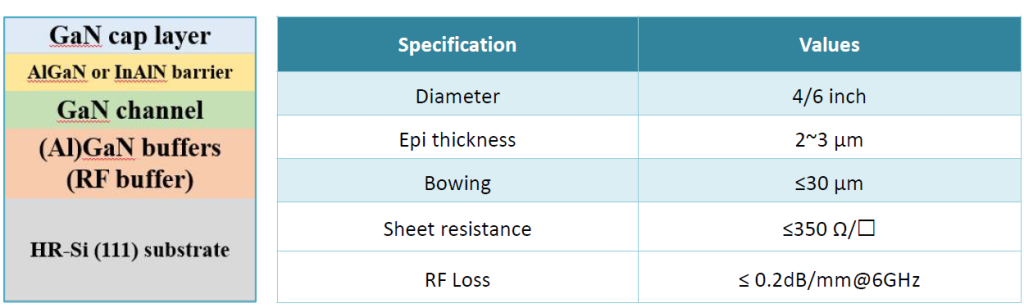

Wafer Size and Epi-Structure

Item	Criteria	Typical	Uniformit	Condition	Standard
			Crystal Quality of GaN buffer (arcsec)
XRC FWHM(002)	≤800	700		XRD
XRC FWHM(102)	≤1200	900		XRD
			2DEG transport properties
Mobility	≥1800	1900		Hall
Concentration	≥9E12	1E13		Hall
Rsh	≤350	300		Hall
			Wafer Profile and Surface characteristics
Wafer Bow	≤30	≤20		PL mapping
			Total Defect
Edge Crack	≤3 mm	1mm
Scratch	No	No
RMS @5×5 μm2	≤0.5 nm	0.3 nm		AFM

GaN wafer data sheet

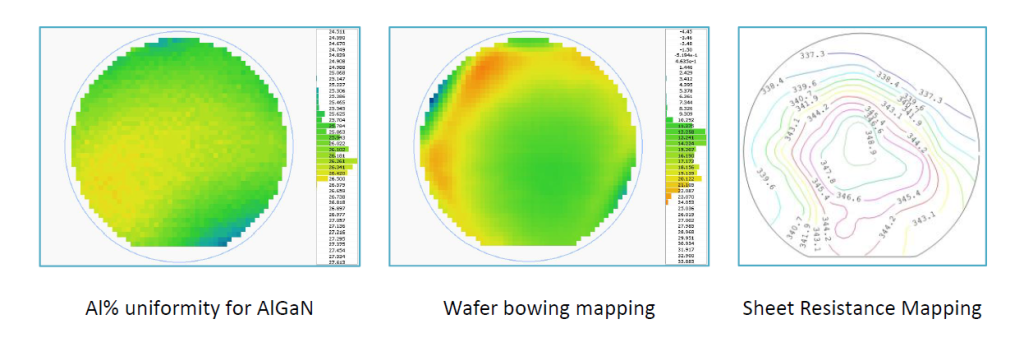

Typical Characteristics Datasheet

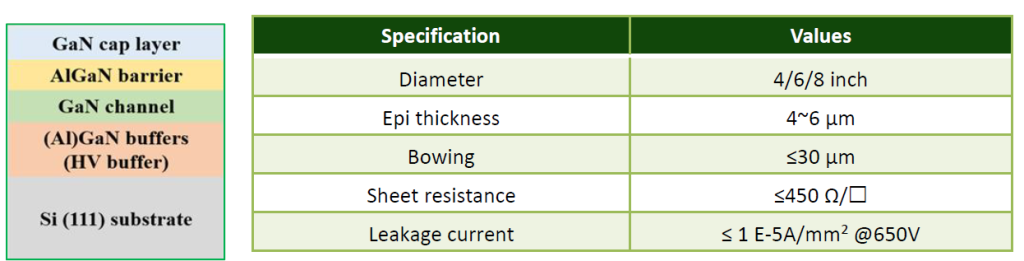

GaN/Si Epiwafers

Wafer Size and Epi-Structure

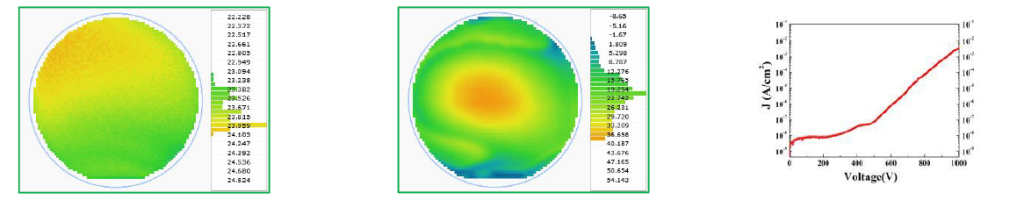

Typical Characteristics Datasheet

What Are Gallium Nitride on Silicon Applications?

1. light emitters of UV through green wavelengths
2. optical detectors
3. microwave communication
4. high power applications.

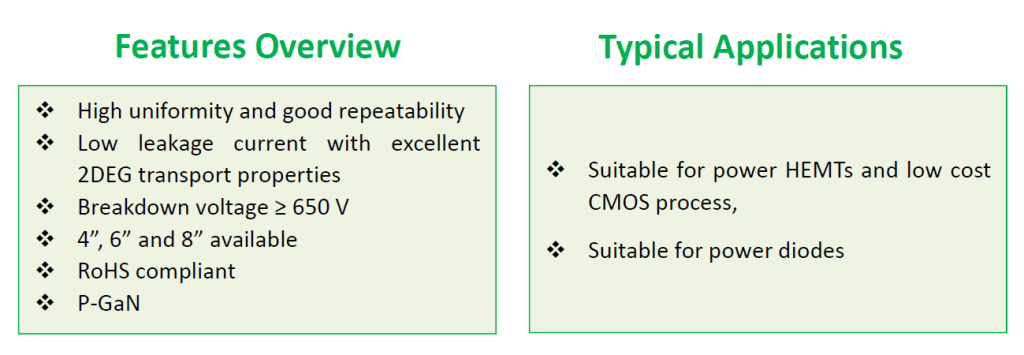

Typical Application

*Power HEMT
*RF HEMT
*GaN Diode

What GaN on Si Spec is Used 650V to Fabricate Power HEMT?

E-Mode usually has better performance than D-Mode. Scientists have used the following:
Pls see below for 4” and 6” 650V Power HEMT GaN epi wafer

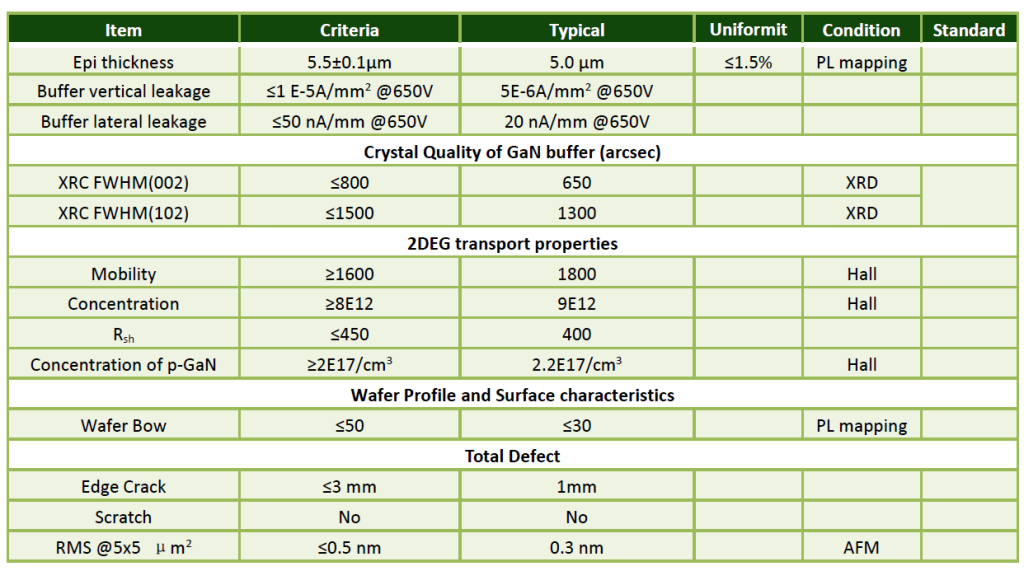

1. 4” GaN-Si Epi wafer for 650V Power HEMTs
2. 6” GaN-Si Epi wafer for 650V Power HEMTs
Contact us for pricing.

Will Gallium Nitride Replace Silicon Wafers?

Maybe in the future ,but Silicon wafers also have unique uses.

Is GaN better than silicon?

Power density is greatly improved in gallium nitride devices compared to silicon ones because GaN has the capacity to sustain much higher switching frequencies. It also has an increased ability to sustain elevated temperatures

How are GaN wafers made?

It is made with original HVPE method and wafer processing technology, which has been originally developed for many years. The features are high crystalline, good uniformity, and superior surface quality. GaN substrates are used for LD applications (violet, blue and green).
