Customized Size Laser Sapphire Crystal High Hardness Anti Corrosion
Customized Size Laser Sapphire Crystal High Hardness Anti Corrosion
Customized Size Laser Sapphire Crystal High Hardness Anti Corrosion
Contents
Customized Size Laser Sapphire Crystal High Hardness Anti Corrosion
Shanghai Xinkehui Material Tech. Co., Ltd produces wafers to all SEMI Standards including dimensional, flat, and notch specifications. In addition, we offer customspecifications designed to your unique needs including, alignment marks, holes, pockets, edge profile, thickness, flatness,
surface quality, cleanliness, or any other details critical to your application. We also offer these wafers in a broad array ofmaterials including Borosilicate, Aluminosilicate, Fused Silica (instead of quartz), Quartz, and Soda Lime.
| Place of Origin: | china |
| Brand Name: | xkh |
| Model Number: | 10x10x5mmt |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | by case |
| Packaging Details: | customized plastic box |
| Delivery Time: | 2-4weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/month |

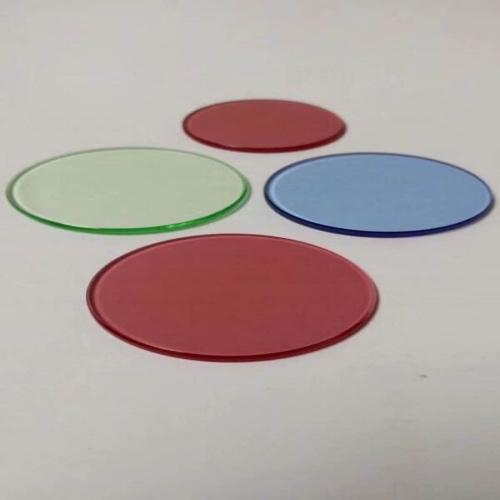

10x10mmt blue/green/ yellow/ red colored doped sapphire block/Cr3+doped/(Cr: Al2O3) sapphire crystal block
Highly frequency Ti+ doped (Titanium doped)/ Cr+ doped sapphire single crstal used in laser / optical / sapphire laser crystals,ruby glass ball/ ruby sapphire lens

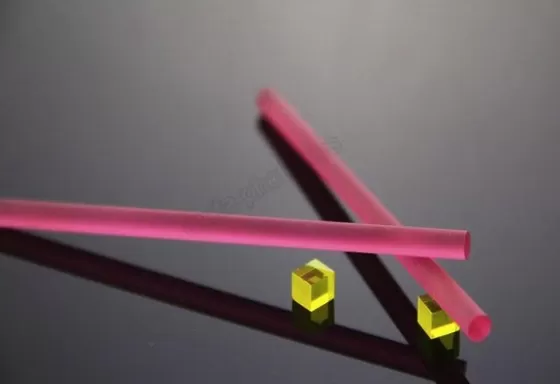

Coating customzied size polisehd diameter3x100mmt ruby laser rod lens for laser equipment

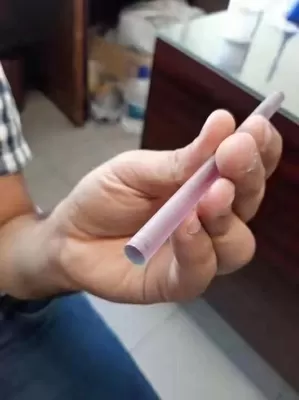

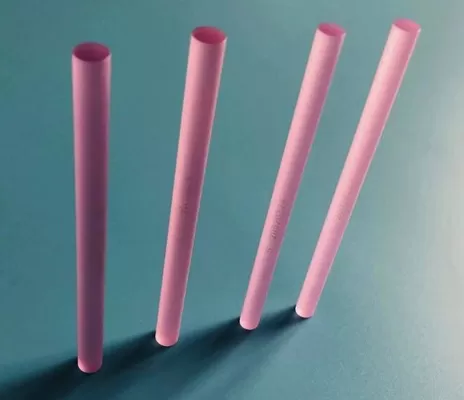

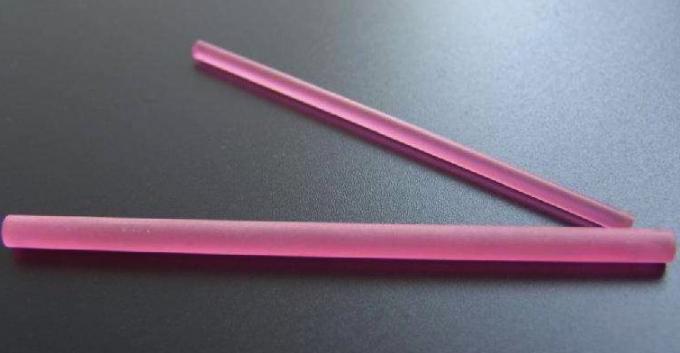

Ruby is a three-level laser material. It is generally made of a high-performance aluminum oxide crystal with 0.03 – 0.4% Cr3+, which is made into artificial ruby, which is much better than ordinary natural ruby. performance. Common ruby rods range in size from 0.5 cm to 2 cm in diameter and 4 cm to 16 cm in length. It may look like a very light pink glass rod or a very deep reddish brown, depending on the concentration of Cr in the stick. It will be very special to get in with a green laser pointer.
| Material: | RUBY SAPPHIRE | Doped: | Cr+ |
|---|---|---|---|
| Color: | Red | Size: | 36x36x40mmt |
| Growth Method: | CZ | Application: | Optical Glass/watch Parts |
| Coating: | Ok | Flatness: | 1/4 Lamda |
| S/D: | 20/10 | Polish: | Laser Grade Polished |
| High Light: | sapphire block, sapphire material |
Coating customzied size polisehd diameter3x100mmt ruby laser rod lens for laser equipment
Ruby is a three-level laser material. It is generally made of a high-performance aluminum oxide crystal with 0.03 – 0.4% Cr3+, which is made into artificial ruby, which is much better than ordinary natural ruby. performance. Common ruby rods range in size from 0.5 cm to 2 cm in diameter and 4 cm to 16 cm in length. It may look like a very light pink glass rod or a very deep reddish brown, depending on the concentration of Cr in the stick. It will be very special to get in with a green laser pointer.
| Product Name: | Ruby (Cr: Al2O3) crystal substrate |
| Product Description: | Al2O3 single crystal (Sapphire, also known as white stones, sapphire) has good thermal properties, excellent electrical characteristics and dielectric properties, and anti-chemical corrosion, it is high temperature, thermal conductivity, high hardness, infrared transparent, chemically stable good. Widely used in high-temperature infrared window materials and III-V nitride epitaxial film substrate and a variety of materials to meet the growing blue, violet, white light-emitting diode (LED) and blue laser (LD) needs, Branch Crystal company specializing in the production of high quality polished sapphire crystal and epitaxial substrates will provide you with a lot of high quality and low price monocrystalline substrate. |
| Technical parameters: | CrystalsCr: Al2O3StructureHexagonal a = 4.758Å c = 12.991ÅMp2040 oCDensity3.98 g/cm3Mohs hardness9 (mohs)Thermal expansion7.5 (x10-6 / oC)Growth methodCZ |
| Specifications: | Can be customized orientation and size. |
| Standard Packaging: | 1000 clean room, 100 clean bag or single box packaging |
Ruby is one of hardest known material with consistent quality available on a commercially economical scale.
With a hardness of 2300 HV it is much more harder then most of the known hard materials like ceramics, etc.

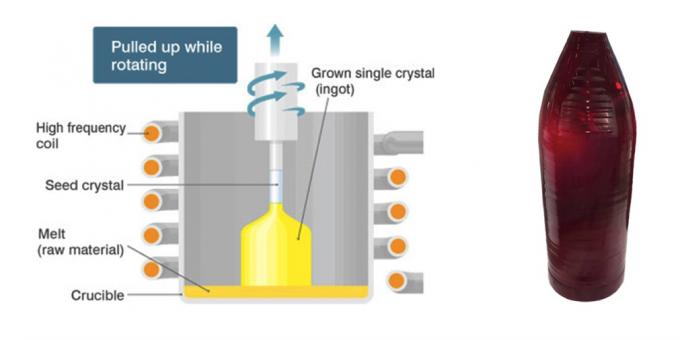

Ruby raw material is grown in a factory by Melting ultra pure Al2O3 at temperature higher then 2000 deg. Celcius to create a single crystal.
This hard material has the ability to be polished to a very good surface finish.
Sapphire and Ruby Ball Lenses. Sapphire and Ruby ball lenses are bothmade from Al 2 0 3. Ruby or Ruby-Doped sapphire owes its red color totraces of chromium oxide (chromium content for ruby balls is typically>0.5%). While their physical and chemical properties are basically the same, their optical properties are somewhat different.
