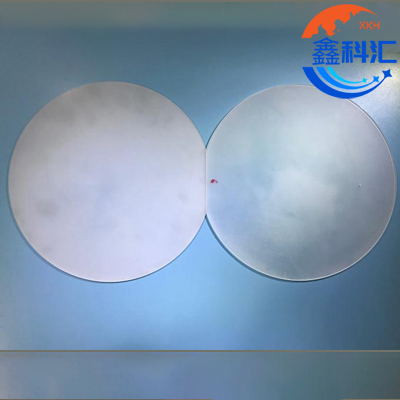

Custom high quality Al2O3 Sapphire optical window with silicon substrate SSP DSP

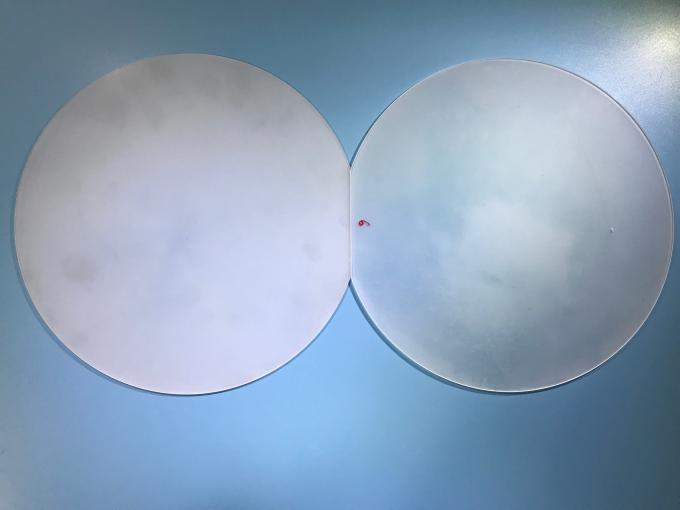

200mm 8inch Al2O3 Sapphire Optical Windows , Silicon Substrate SSP DSP 1.0mm C – Axis

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Custom high quality Al2O3 Sapphire optical window with silicon substrate SSP DSP-Xinkehui

200mm 8inch Al2O3 Sapphire Optical Windows , Silicon Substrate SSP DSP 1.0mm C – Axis: 8inch/6inch/5inch/ 2inch /3inch 4inch /5inch C-axis/ a-axis/ r-axis/ m-axis 6″/6inch dia150mm C-plane Sapphire SSP/DSP wafers with 650um/1000um Thickness

About synthetic sapphire crystal

Products – Sapphire Substrate

High Light：sapphire wafer, sapphire material
Material：Sapphire Single Crystal
Orientation：C-axis
Surface：Ssp Or Dsp
Thickness：0.5mm Or Customized
Application：Led Or Optical Glass
Growth Method：Ky
Place of Origin：china
Brand Name：zmkj
Model Number: 8INCH*1.0mmt
Minimum Order Quantity:25pcs
Price: by case

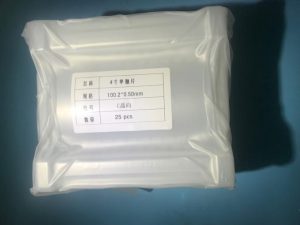

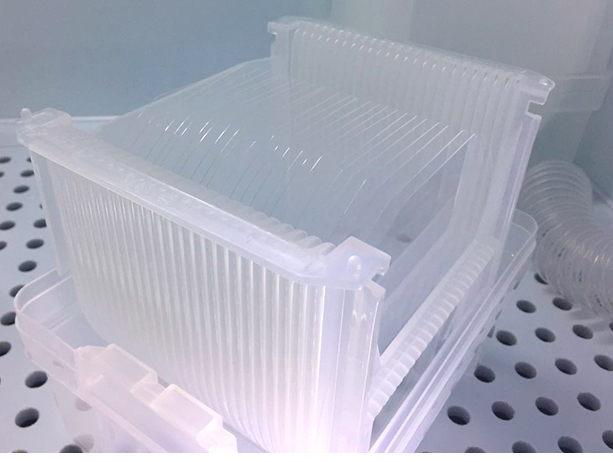

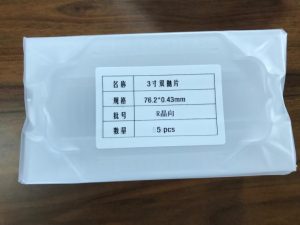

Packaging Details: in 25pcs cassette wafer box under 100grade cleaning room
Delivery Time: 3-5weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability:1000pcs per month

200mm 8inch Al2O3 Sapphire Optical Windows , Silicon Substrate SSP DSP 1.0mm C – Axis: The Kyropoulos process (KY process) for sapphire crystal growth is currently used by many companies in China to produce sapphire for the electronics and optics industries.
High-purity, aluminum oxide is melted in a crucible at over 2100 degrees Celsius. Typically the crucible is made of tungsten or molybdenum. A precisely oriented seed crystal is dipped into the molten alumina. The seed crystal is slowly pulled upwards and may be rotated simultaneously. By precisely controlling the temperature gradients, rate of pulling and rate of temperature decrease, it is possible to produce a large, single-crystal, roughly cylindrical ingot from the melt.

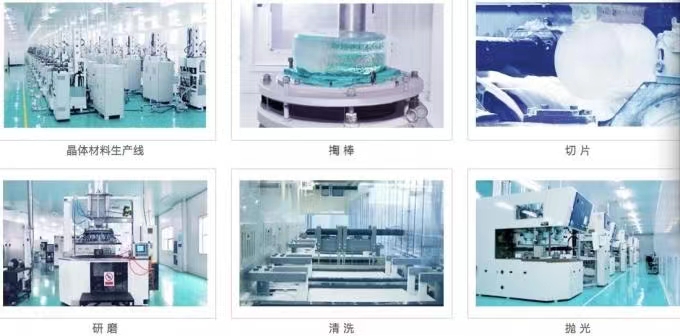

After single crystal sapphire boules are grown, they are core-drilled into cylindrical rods, The rods are sliced up into the desired window thickness and finally polished to the desired surface finish.

GENERAL
Chemical Formula		Al2O3
Crystal Stucture		Hexagonal System ((hk o 1)
Unit Cell Dimension		a=4.758 Å,Å c=12.991 Å, c:a=2.730
PHYSICAL
		Metric	English (Imperial)
Density		3.98 g/cc	0.144 lb/in3
Hardness		1525 – 2000 Knoop, 9 mhos	3700° F
Melting Point		2310 K (2040° C)
STRUCTURAL
Tensile Strength		275 MPa to 400 MPa	40,000 to 58,000 psi
	at 20°	400 MPa	58,000 psi (design min.)
	at 500° C	275 MPa	40,000 psi (design min.)
	at 1000° C	355 MPa	52,000 psi (design min.)
Flexural Stength		480 MPa to 895 MPa	70,000 to 130,000 psi
Compression Strength		2.0 GPa (ultimate)	300,000 psi (ultimate)

The Kyropoulos process (KY process) for sapphire crystal growth is currently used by many companies in China to produce sapphire for the electronics and optics industries.
High-purity, aluminum oxide is melted in a crucible at over 2100 degrees Celsius. Typically the crucible is made of tungsten or molybdenum. A precisely oriented seed crystal is dipped into the molten alumina. The seed crystal is slowly pulled upwards and may be rotated simultaneously. By precisely controlling the temperature gradients, rate of pulling and rate of temperature decrease, it is possible to produce a large, single-crystal, roughly cylindrical ingot from the melt.
After single crystal sapphire boules are grown, they are core-drilled into cylindrical rods, The rods are sliced up into the desired window thickness and finally polished to the desired surface finish.
Tweet

Use as substrate for semiconducting circuits
Thin sapphire wafers were the first successful use of an insulating substrate upon which to deposit silicon to make the integrated circuits known as silicon on sapphire or “SOS”, Besides its excellent electrical insulating properties, sapphire has high thermal conductivity. CMOS chips on sapphire are especially useful for high-power radio-frequency (RF) applications such as those found in cellular telephones, public-safety band radios, and satellite communication systems.
Wafers of single-crystal sapphire are also used in the semiconductor industry as substrates for the growth of devices based on gallium nitride (GaN). The use of sapphire significantly reduces the cost, because it has about one-seventh the cost of germanium. Gallium nitride on sapphire is commonly used in blue light-emitting diodes (LEDs).

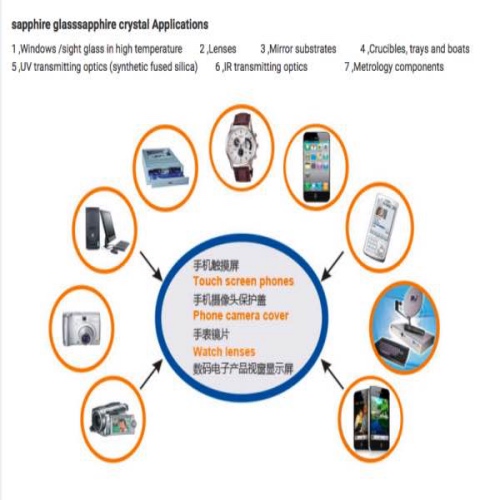

Used as a window material
Synthetic sapphire (sometimes referred to as sapphire glass) is commonly used as a window material, because it is both highly transparent to wavelengths of light between 150 nm (UV) and 5500 nm (IR) (the visible spectrum extends about 380 nm to 750 nm, and extraordinarily scratch-resistant. The key benefits of sapphire windows are:
* Very wide optical transmission band from UV to near-infrared
* Significantly stronger than other optical materials or glass windows
* Highly resistant to scratching and abrasion (9 on the Mohs scale of mineral hardness scale, the 3rd hardest natural substance next to moissanite and diamonds)
* Extremely high melting temperature (2030 °C)

CATALOGU ＆ Stcok List

Standard wafer(customzied) 2 inch C-plane sapphire wafer SSP/DSP 3 inch C-plane sapphire wafer SSP/DSP 4 inch C-plane sapphire wafer SSP/DSP 6 inch C-plane sapphire wafer SSP/DSP	Special Cut A-plane (1120) sapphire wafer R-plane (1102) sapphire wafer M-plane (1010) sapphire wafer N-plane (1123) sapphire wafer C-axis with a 0.5°~ 4° offcut, toward A-axis or M-axis Other customized orientation
Customized Size 1010mm sapphire wafer 2020mm sapphire wafer Ultra thin (100um) sapphire wafer 8 inch sapphire wafer	Patterned Sapphire Substrate (PSS) 2 inch C-plane PSS 4 inch C-plane PSS

2inch	DSP C-AXIS 0.1mm/0.175mm/0.2mm/0.3mm/0.4mm /0.5mm/ 1.0mmt SSP C-axis 0.2/0.43mm (DSP＆SSP) A-axis/M-axis/R-axis 0.43mm
3inch	DSP/ SSP C-axis 0.43mm/0.5mm
4inch	dsp c-axis 0.4mm/ 0.5mm/1.0mm ssp c-axis 0.5mm/0.65mm/1.0mmt
6inch	ssp c-axis 1.0mm/1.3mmm dsp c-axis 0.65mm/ 0.8mm/1.0mmt

Specification for substrates

Orientation	R-plane, C-plane, A-plane, M-plane or a specified orientation
Orientation Tolerance	± 0.1°
Diameter	2 inches, 3 inches, 4 inches, 5inch,6 inches, 8 inches or others
Diameter Tolerance	0.1mm for 2 inches, 0.2mm for 3 inches, 0.3mm for 4 inches, 0.5mm for 6 inches
Thickness	0.08mm,0.1mm,0.175mm,0.25mm, 0.33mm, 0.43mm, 0.65mm, 1mm or others;
Thickness Tolerance	5μm
Primary Flat Length	16.0±1.0mm for 2 inches, 22.0±1.0mm for 3 inches, 30.0±1.5mm for 4 inches, 47.5/50.0±2.0mm for 6 inches
Primary Flat Orientation	A-plane (1 1-2 0 ) ± 0.2°; C-plane (0 0-0 1 ) ± 0.2°, Projected C-Axis 45 +/- 2°
TTV	≤7µm for 2 inches, ≤10µm for 3 inches, ≤15µm for 4 inches, ≤25µm for 6 inches
BOW	≤7µm for 2 inches, ≤10µm for 3 inches, ≤15µm for 4 inches, ≤25µm for 6 inches
Front Surface	Epi-Polished (Ra< 0.3nm for C-plane, 0.5nm for other orientations)
Back Surface	Fine ground (Ra=0.6μm~1.4μm) or Epi-polished
Packaging	Packaged in a class 100 clean room environment

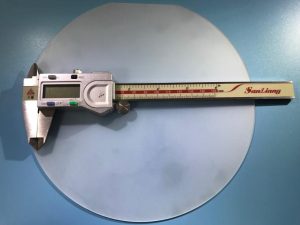

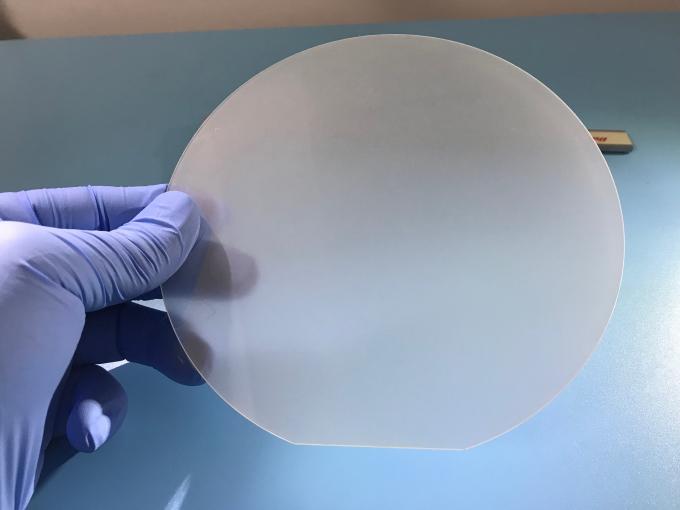

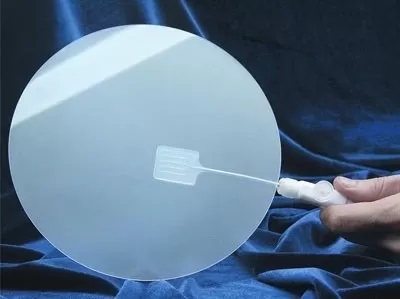

Products Detail

No Caption

Payment / Shipping

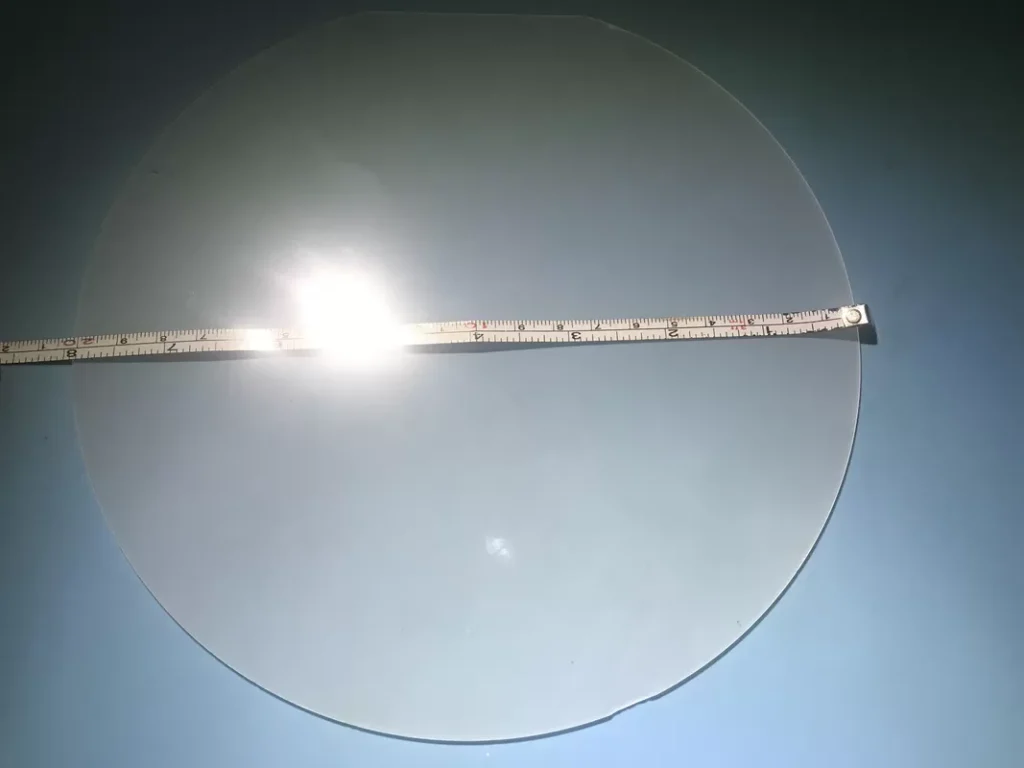

200mm 8inch Al2O3 Sapphire Optical Windows , Silicon Substrate SSP DSP 1.0mm C - Axis 9

What are the properties of Al2O3 sapphire?

The hardest of the oxide crystals, sapphire Al2O3 retains its high strength at high temperatures, has good thermal properties and excellent transparency. Sapphire Al2O3 optics is chemically resistant to many acids and alkalis at temperatures up to 1000 degrees C as well as to HF below 300 degrees C.

Is Al2O3 a glass?

Alumina (Al₂O₃) can be considered as an intermediate, because it can be both a glass former and a glass modifier in binary oxide glasses, although Al₂O₃ cannot solely form glass. Al₂O₃ has many applications, e.g., in cements, substrates of electronic materials, and high-temperature crucibles.

Is silicon substrate p type?

Silicon is the most common type of p-type semiconductor, while antimony is the most common type of n-type semiconductor. Metalloids are also used in p-type semiconductors, such as antimony and boron. These elements are also known as acceptors. Trivalent elements like Al and B are used to make p-type semiconductors.
