12 Inch Sapphire wafers sapphire windows Substrate Dia 300mm C Plane Quartz Wafers BF33

12 Inch Sapphire wafers sapphire windows Substrate Dia 300mm C Plane Quartz Wafers BF33

Product-Sapphire Substrate

• High Light: C Plane Quartz Wafers Substrates,  12 Inch Single Crystal Sapphire Wafer,  Sapphire Fused Silica Wafer
• Material: Sapphire Substrate Grade
• Orientation: C-AXIS
• Thickness: 1000um(other Thickness Ok)
• Surface: DSP
• TTV: ＜10um
• BOW: ＜30um
• Warp: ＜30um
• Package: 100 Grade Cleaning Room By Vacuum Package
• Customize: Acceptable
• Place of Origin: CHINA
• Brand Name: XKH
• Model Number: 12inch
• Minimum Order Quantity: 10pcs
• Price: usd2000/pc

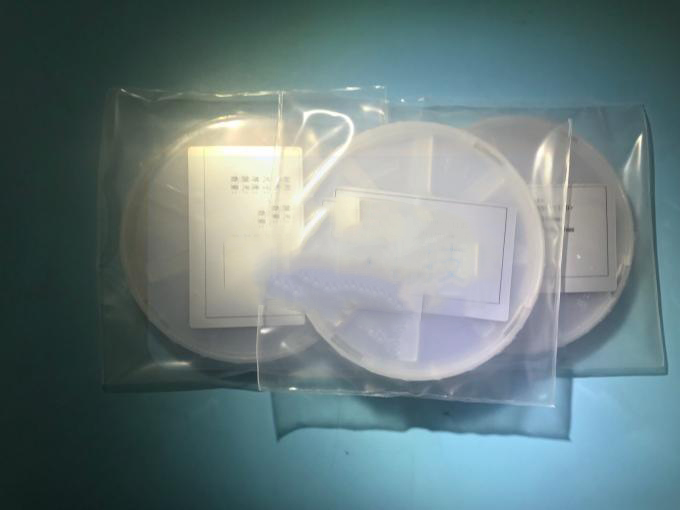

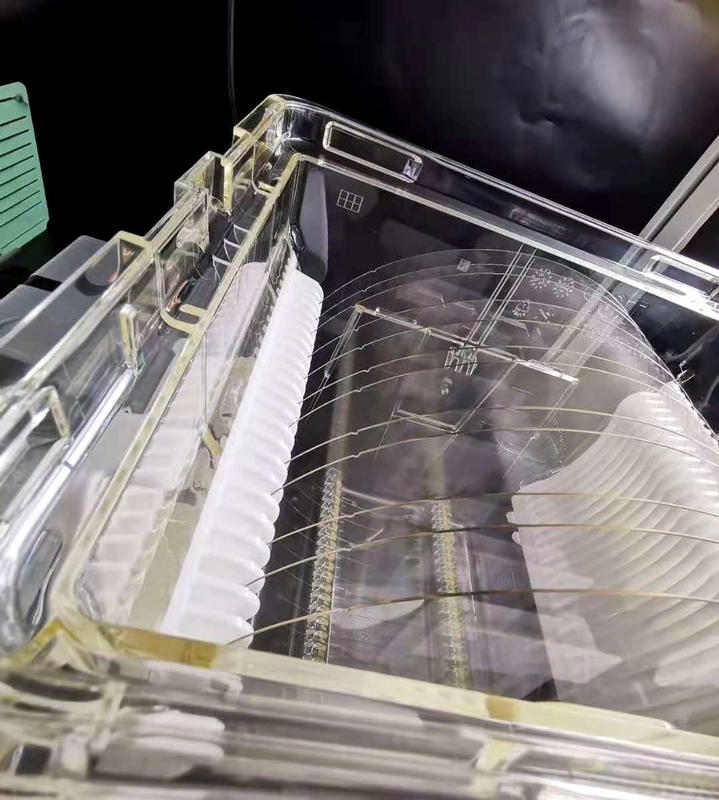

• Packaging Details: 25pcs cassettle wafer case in 100 grade cleaning bag
• Delivery Time: 45days
• Payment Terms : T/T, Western Union, MoneyGram
• Supply Ability1000pcs per month

3inch 300um 500um sapphire wafers sapphire substrate C-plane for epitaxial growth

Ultra-thin  2inch sapphire  DSP wafers  thickness 100um 0.1mm

2inch 100um Ultra Thin sapphire wafers 0.1mm Thickness C-plane DSP Sapphire wafer

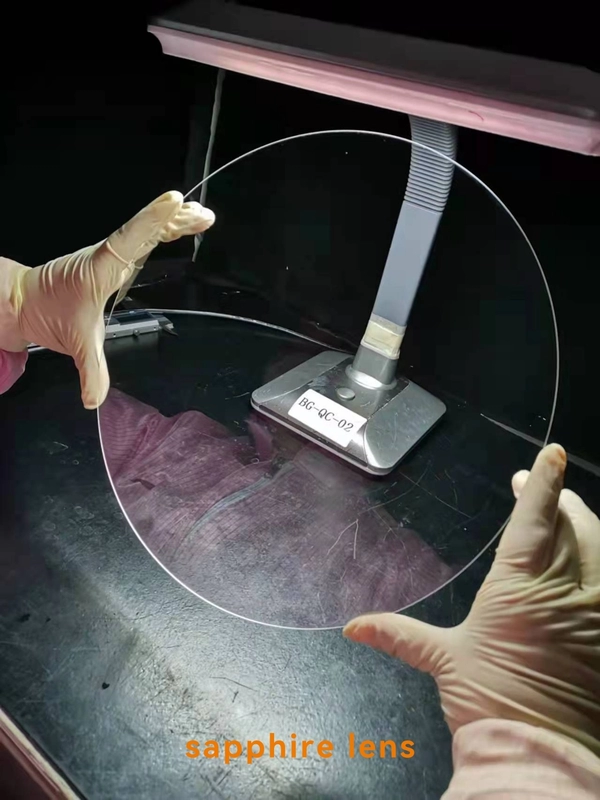

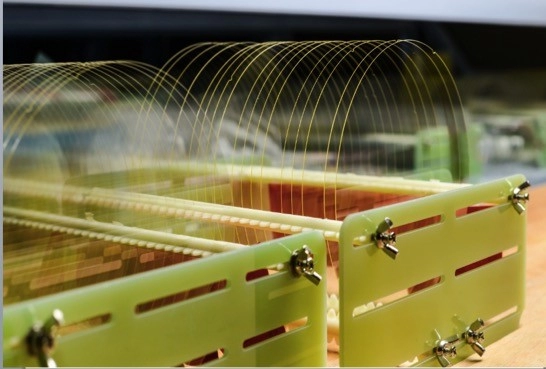

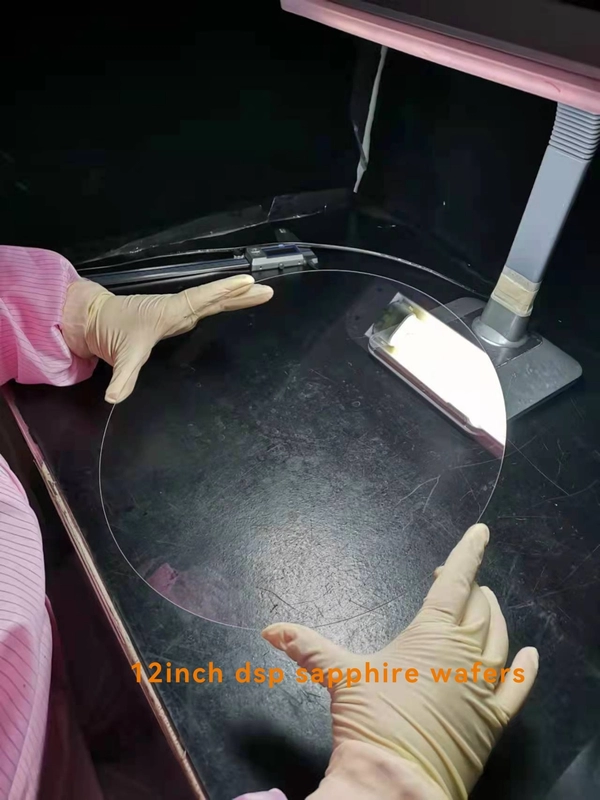

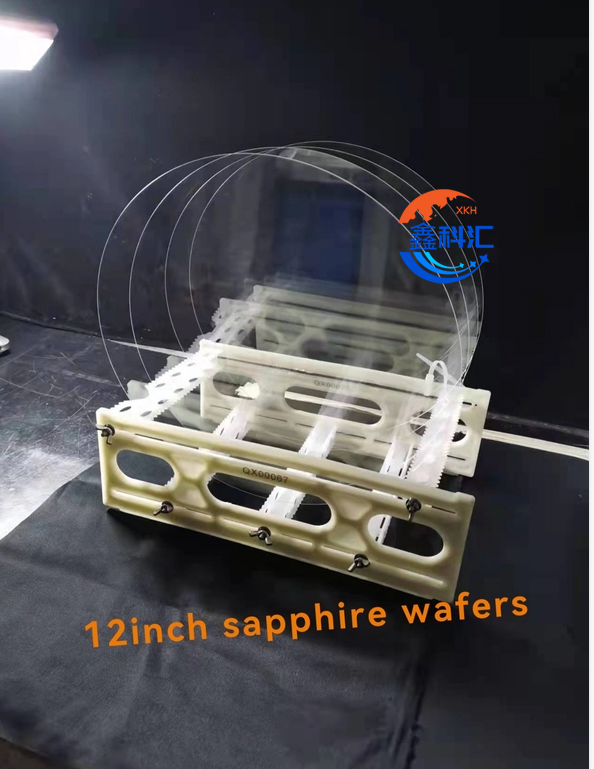

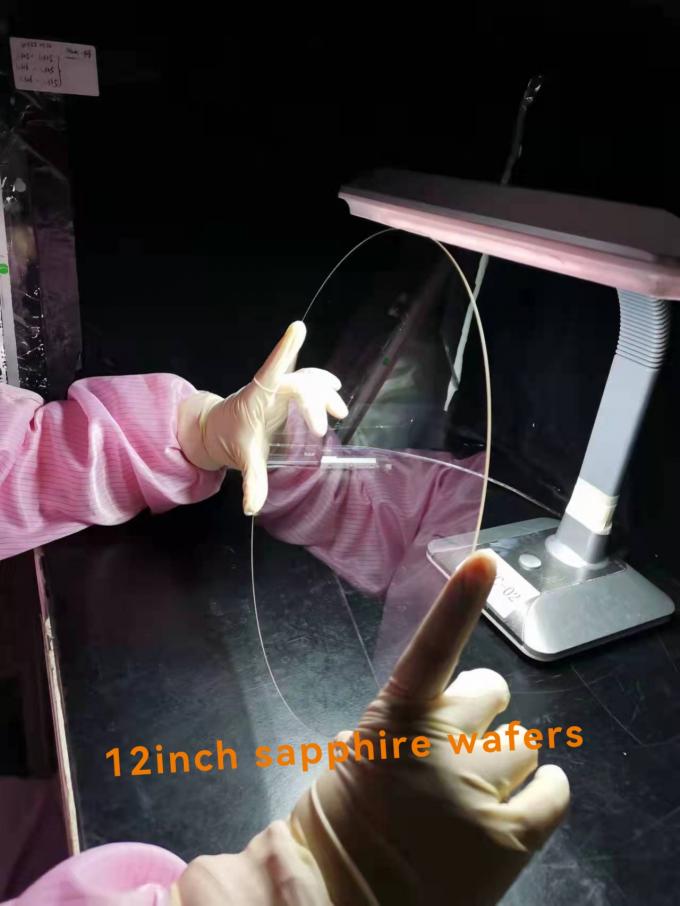

12inch sapphire wafers dia300mm DSP C-plane wafers BF33, Quartz wafers

12 Inch Sapphire wafers sapphire windows Substrate Dia 300mm C Plane Quartz Wafers BF33

1. Sapphire has a high optical transmittance, so it is widely used as microelectronic tube dielectric material, ultrasonic conduction element, waveguide laser cavity, and other optical elements, as window materials for infrared military devices, space vehicles, high-intensity lasers and optical communications.

2. Sapphire has high rigidity, high strength, high working temperature, abrasion resistance, corrosion resistance characteristics, so sapphire substrate is often used in harsh environments, such as boiler water gauge (high-temperature resistance), commodity bar code scanner, bearing, and other precision manufacturing (wear resistance), coal, gas, well detection sensors and detector windows (anti-corrosion).

3. Sapphire has the characteristics of electrical insulation, transparency, good thermal conductivity, and high rigidity, so it can be used as the substrate material of integrated circuits, such as LED and microelectronic circuits, ultra-high-speed integrated circuit.

EXCELLENT SAPPHIRE WAFERS

• • 99.999 % high purity single crystal Al2O3 material.
  • Special CMP (Chemical Mechanical Polishing) technology to ensure the performance of Al2O3 substrate at a low cost.
  • Excellent surface quality in all orientations (less than 0.2 nm for C-plane, less than 0.5 nm for A-plane, M-plane, R-plane, N-plane, V-plane, 10-14, etc.)
  • Cleaned in class 100 cleanroom by ultrapure water with quality above 18MΩ *cm.
  • 25 pcs a pack or single pack is available to maximize customer flexibility in their research.
  • Traceable product serial number.
  • Compact carton packaging for safer shipping and cost-saving.
  • Standard wafers are Generally in stock to ensure a quick delivery.
  Sapphire application
  • 1. Semiconductor LED industry (MOCVD epitaxial GaN substrate)
  • In general, C-plane sapphire is needed in this area. R-plane or M-plane mainly used to grow non-polar/semi-polar plane epitaxial layers to improve the luminescence efficiency.
  • 2. The growth of III-V or II-VI compound semiconductors.
  • 3. Microelectronic IC applications especially Very High-Speed Integrated Circuit, SOS
  • Generally, it is a silicon heteroepitaxial deposition on R-plane sapphire.
  • 4. Hybrid microelectronics
  • Hybrid microelectronics products are mainly HIC and MCM. It has high requirements on the substrate, while sapphire substrates’ characteristics such as stable dielectric constant and low dielectric loss make sapphire wafer the most commonly used substrate for HIC and the main substrate for MCM. Generally, the A-plane sapphire wafer is needed.
